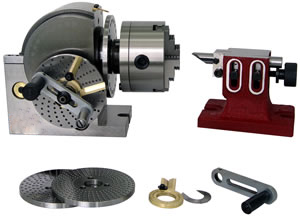

No:3503
Detailed Product Description
* Horizontal and vertical use
* For milling, drilling, jig boring
* 24 division index plates hardened and ground
* 360 graduated satin-chrome ring with 5" adjustable vernier
* Indexing accuracy: 25 seconds
* Base to chuck sqareness: 0.0008"
* Face parallelism: 0.0006"
* Mounting flange concentricity: 0.0008"
* Adjustable chuck concentricity: 0.0005"
<Click on the above picture, see the corresponding links> |
 |

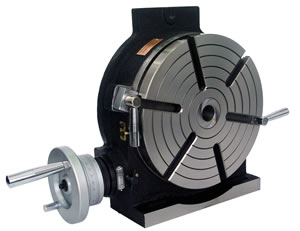

No:3504
Detailed Product Description
* Horizontal and vertical rotary table from 100mm to 400mm.
* 10" vernier
* 90:1 gear ratio
* Low profile
* Hardened and ground worm gear
* 360 degrees scale graduated rotary table
|
 |

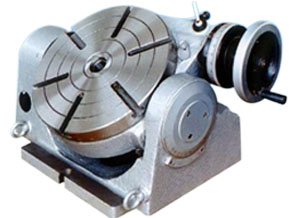

No:3505
Detailed Product Description
* 10" vernier
* 90:1 gear ratio
* Low profile
* Hardened and ground worm gear
* 360กใ scale graduated rotary table
* For indexing, circular milling, angle setting, milling and boring
<Click on the above picture, see the corresponding links> |
